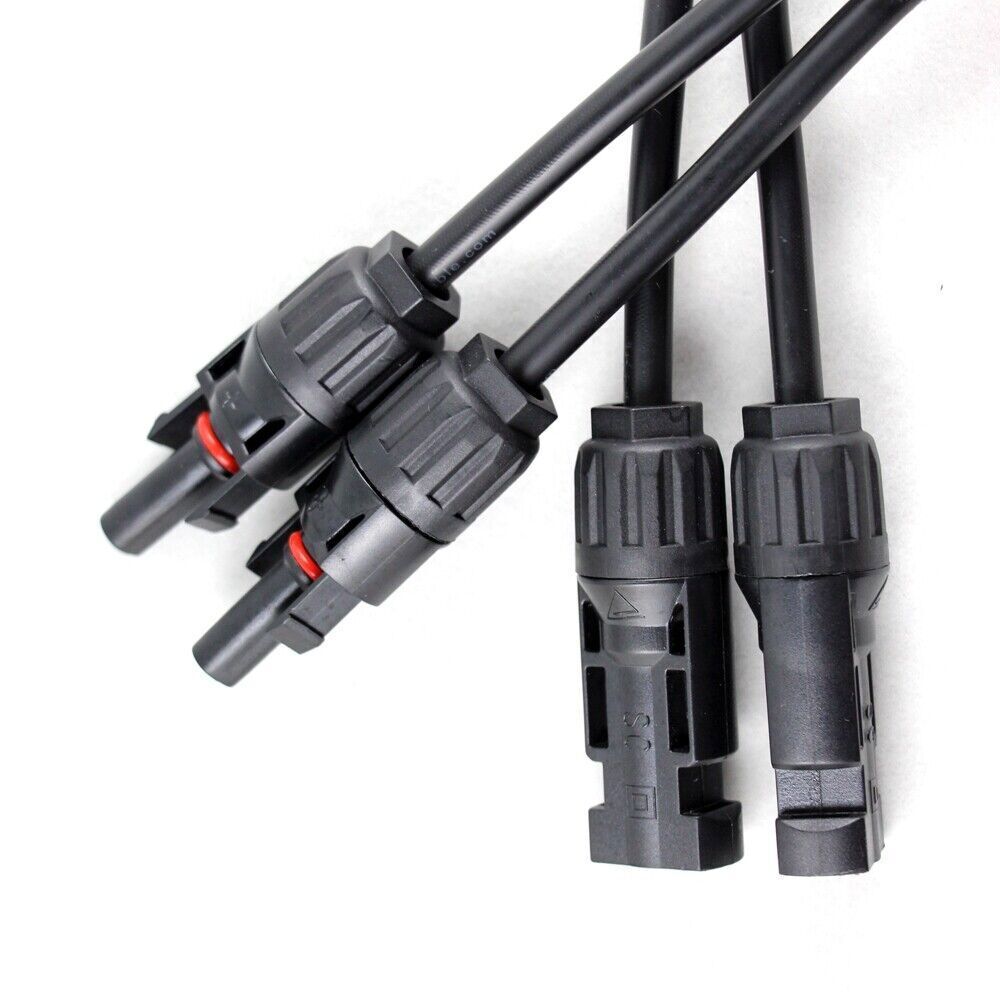

1: Branch Connectors Conductor pin is tinned Copper: made of PPO + PA material. It makes a rock-solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load, anti-aging, and resistance to ultraviolet radiation.

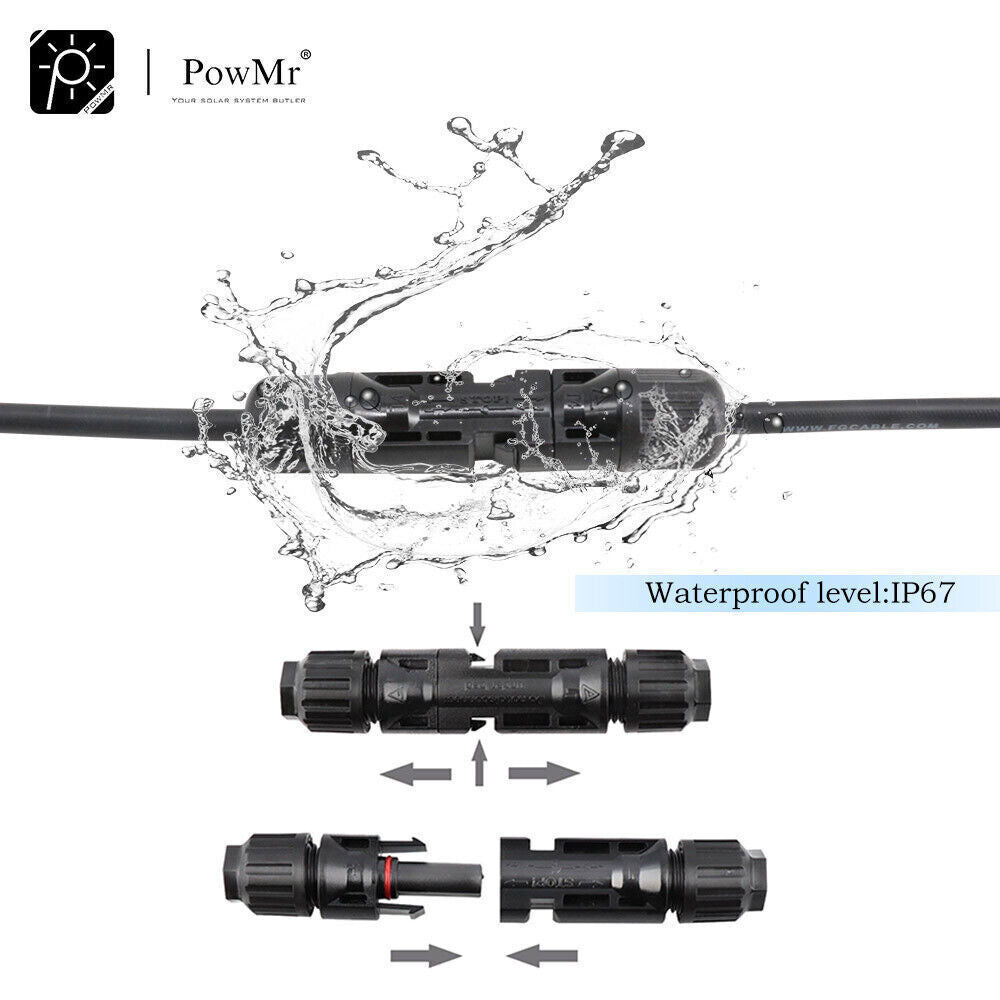

2: UL certification y branch connector Rated Current: 20A; Rated voltage: TUV 1000V DC / UL 600V DC; These connectors Hard plastic IP67 Waterproof and resist dust build up. Widely Operating Temperature range: -40℉ until 185℉, fireproof and Lower contact resistance.

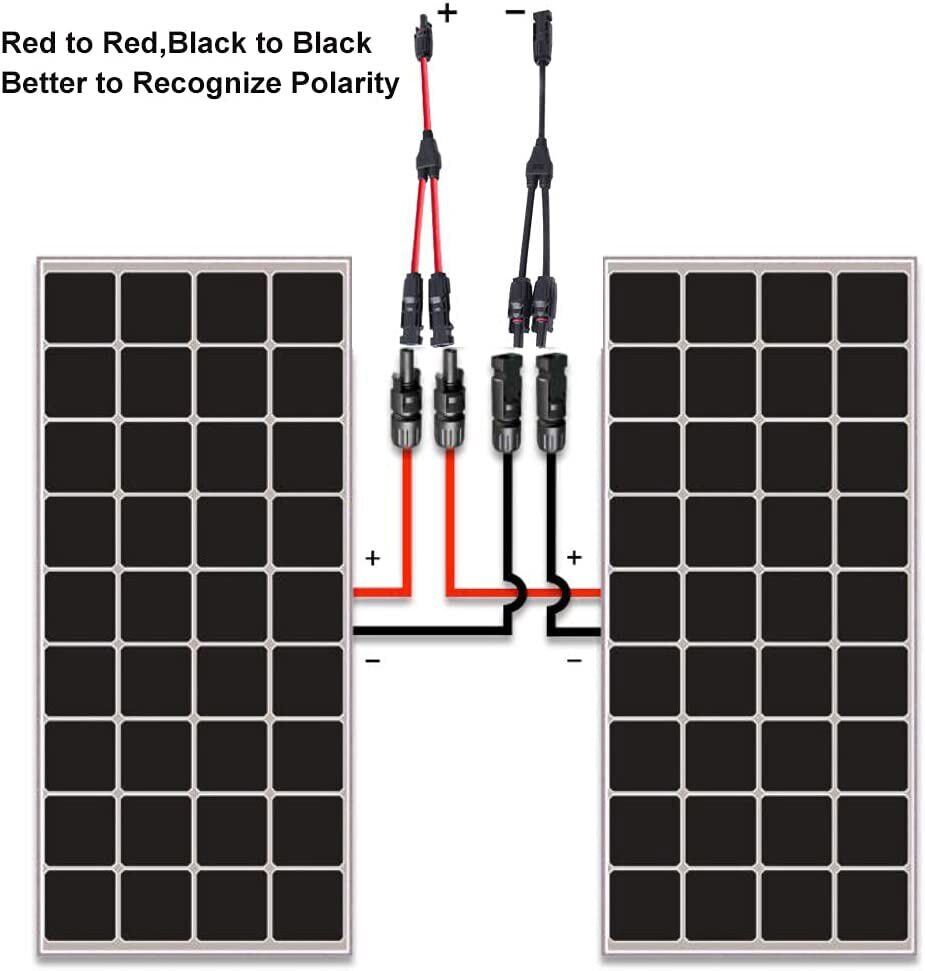

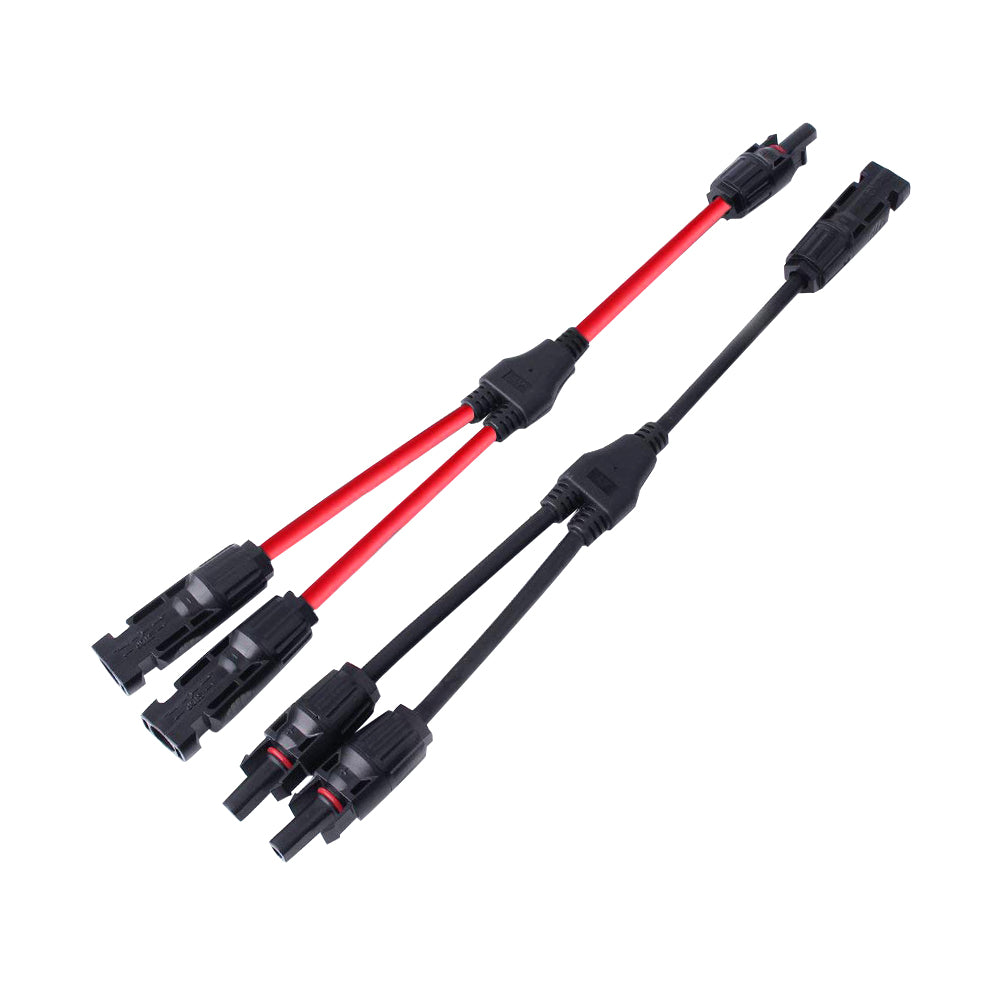

3: The Y solar connectors are designed to complete a solar panel (PV) array, typically in parallel applications. Red to red, black to black, Better to recognize polarity. It could be used as solar panel wiring for connecting two solar panels in parallel and for solar combiner box.
4: UL certification fastness of male and female points with stable self-locking system which is easy to lock and open. Quick Connect & Disconnect Connector Design.
5: Package: 1 pair of solar Y-branch connectors, If you have any product quality problems, you can contact us at any time, and we will solve your problem by refund or exchange.

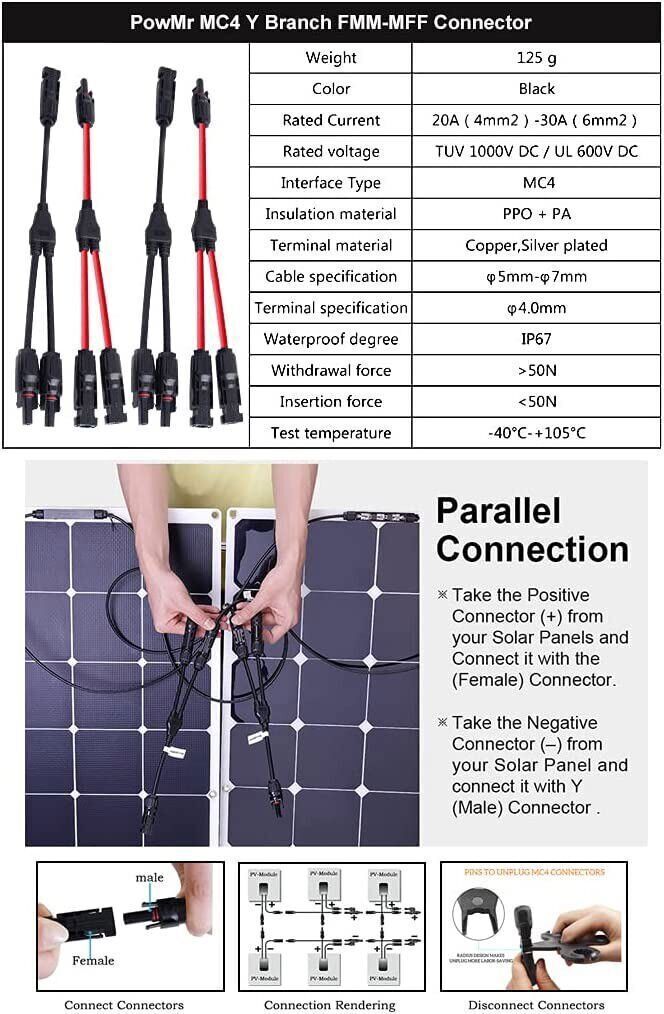

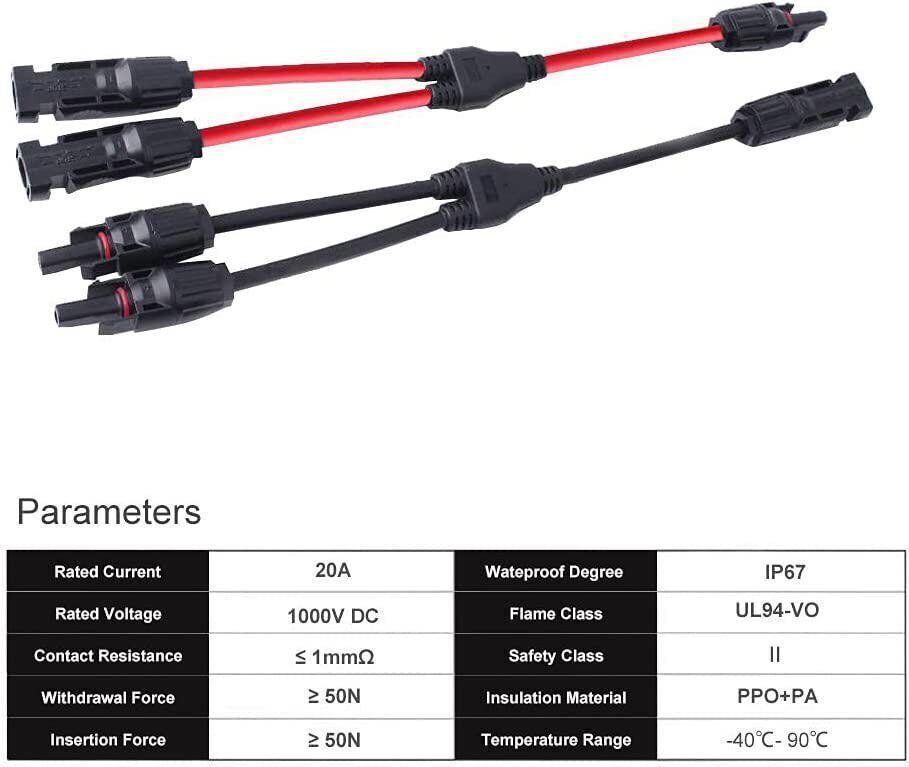

Insulation Material: PC/PPO
Rated Current: 20A
Rated Voltage: DC1000V
Contact Resistance: ≤2.0mΩ
Operating Temperature range: -40℉ until +200℉
Degree of Protection: IP67
Flame Class: UL94-V0
Safety Degree: Ⅱ

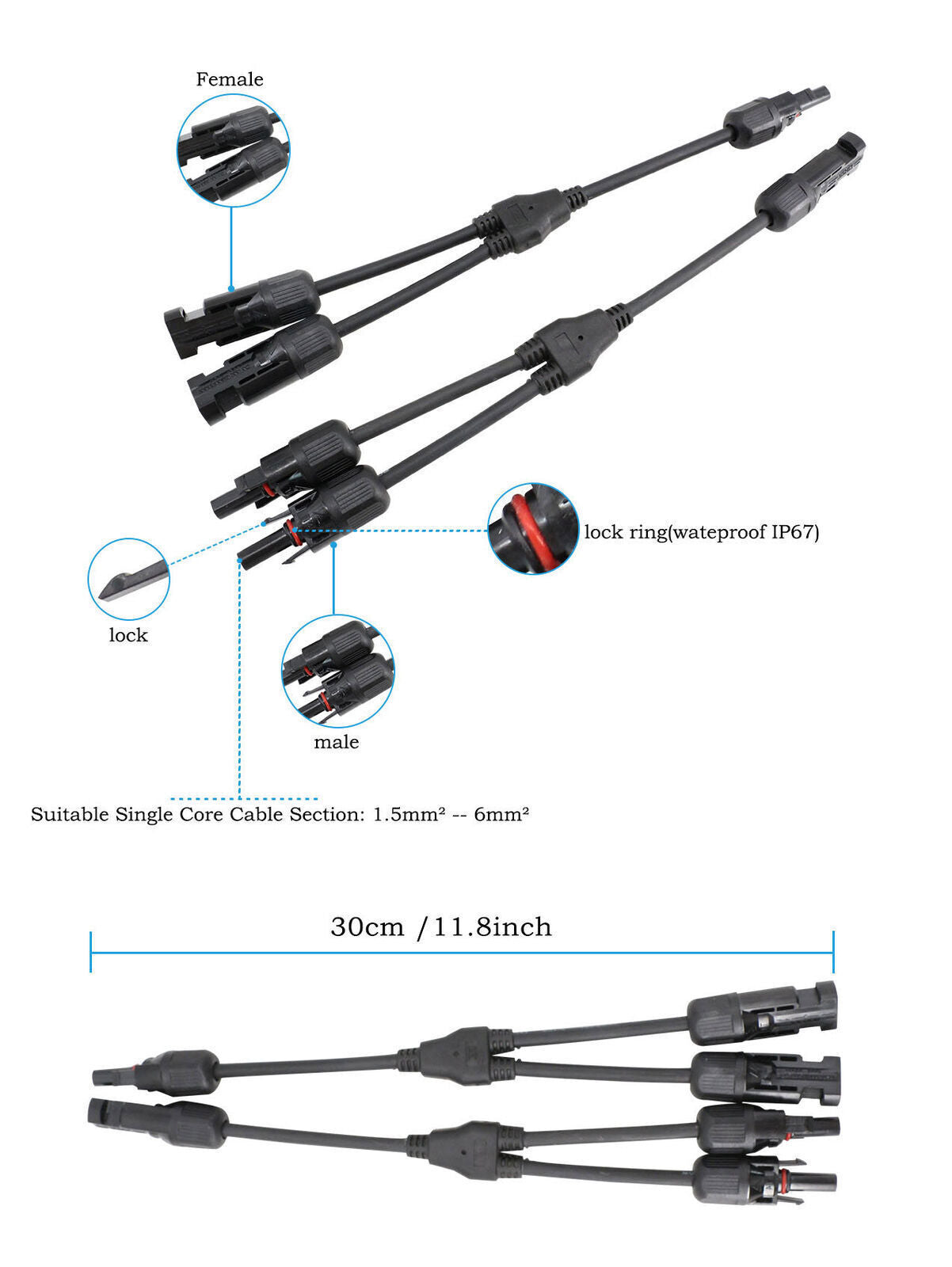

Suitable Single Core Cable Section: 1.5mm²- 6mm²(include AWG14, AWG13,AWG12, AWG11,AWG10)
Please let us know if you have any questions about this product.
