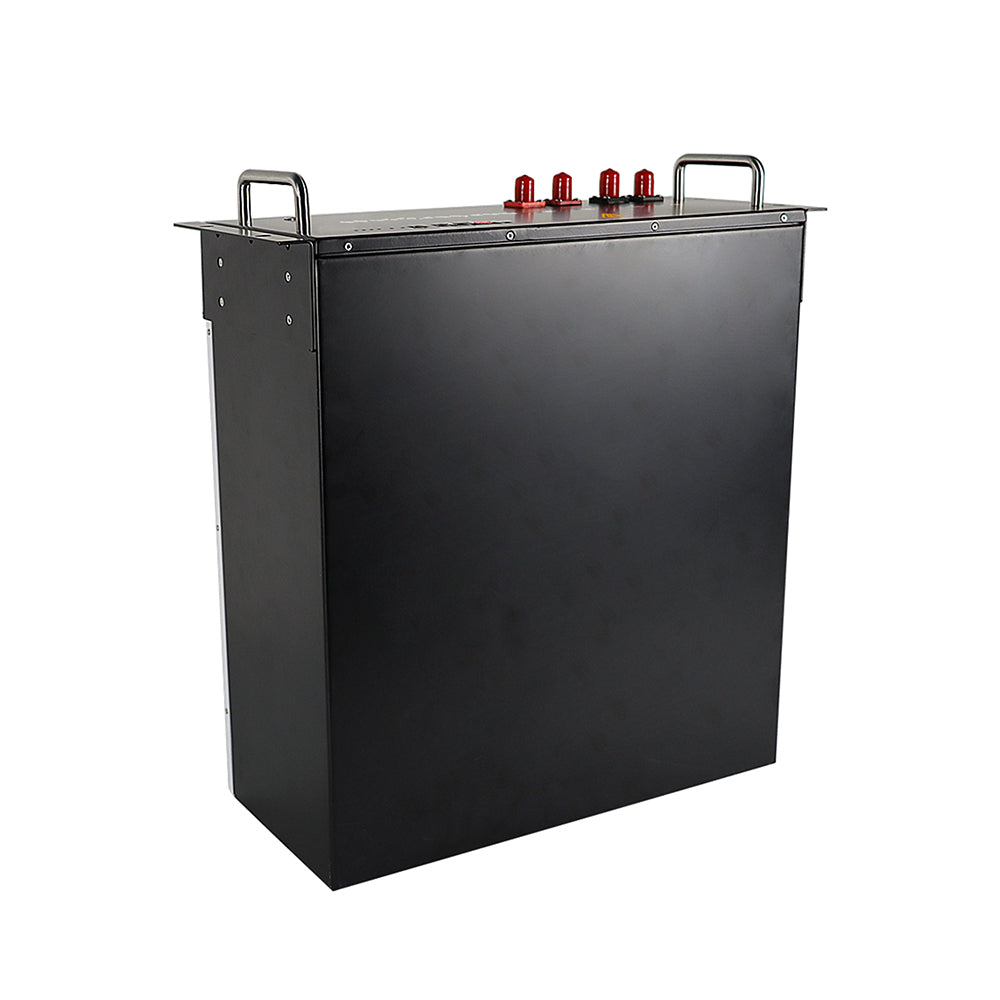

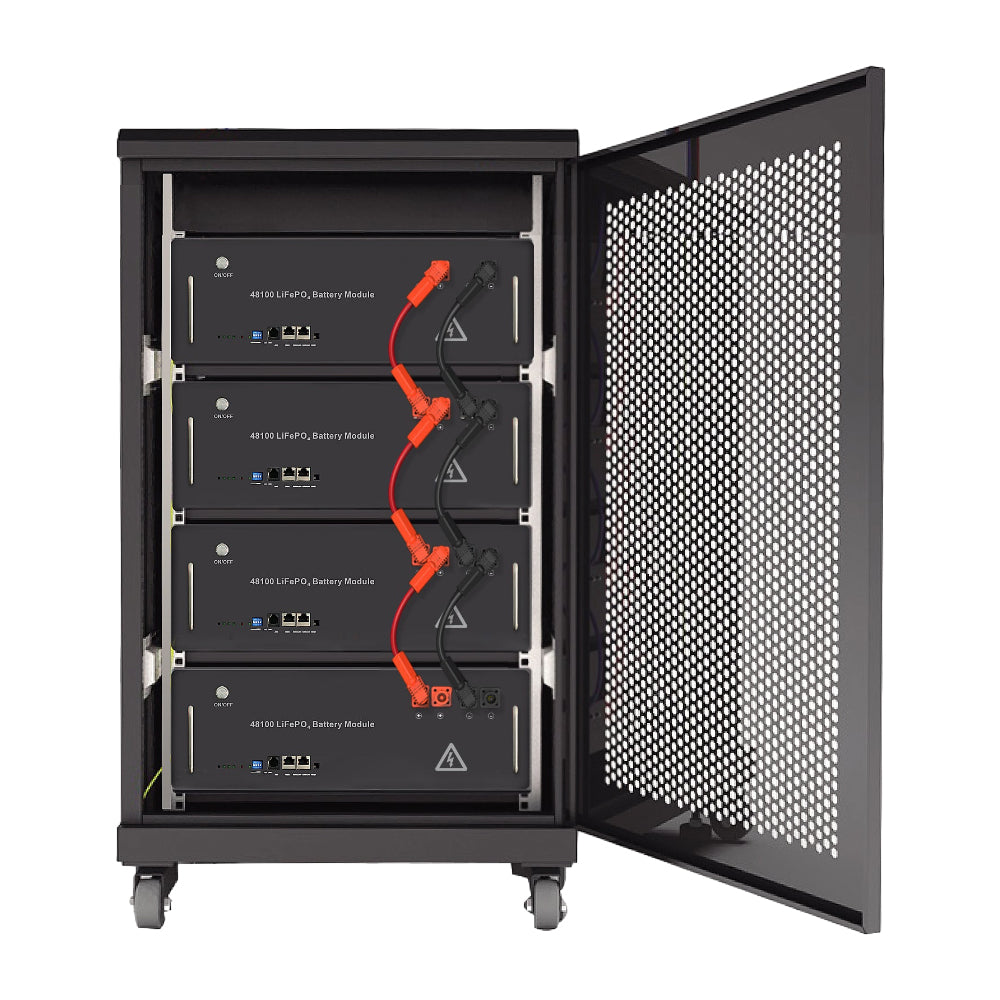

Rack-type energy storage battery covers the energy demand of a single machine from 2.5kwh to 19.2kwh.
Features
1. The battery adopts a high-performance lithium iron phosphate battery with high safety performance and long service life.
2. External weak current switch reduces product power consumption and improves the safety of transportation and storage.
3. With RS485/CAN communication function, it can easily communicate with the equipment communication
4. External wireless module can be connected for remote data monitoring and corresponding control.
5. lt has multiple protection functions to protect the safety of power supply in an all-around way.
6. The output is stable and can be connected to different loads within the voltage range.
7. Support up to 15 independent modules for parallel use.
Number of Modules: 4
Product number: ECG-48V-100AH-15S-4
Array Mode: 15S
Nominal Energy（KWh): 19.2
Minimum Energy (KWh): ≥10.0
Nominal Voltage（V): 48
Charge Voltage (V): 54.7
Discharge Cut-off Voltage (V): 42
Standard Charging Current: 20
Max.Continuous Charging Current: 100
Max.Continuous discharging Current: 100
Communication Mode: ≥6000 times @80%DOD, 25℃
Cycle Life: RS485/CAN
Operating Temp: Charging: 0~60°C; Discharging: -10°C~65°C
Size（L×W×H）mm: 515×493×180
Weight（Kg): 166
Package dimensions (L×W×H）mm: 587×537×1376
Gross weight（Kg): 210
Parallel Support: YES, Max. 15 modules
Please let us know if you have any questions about this product.
