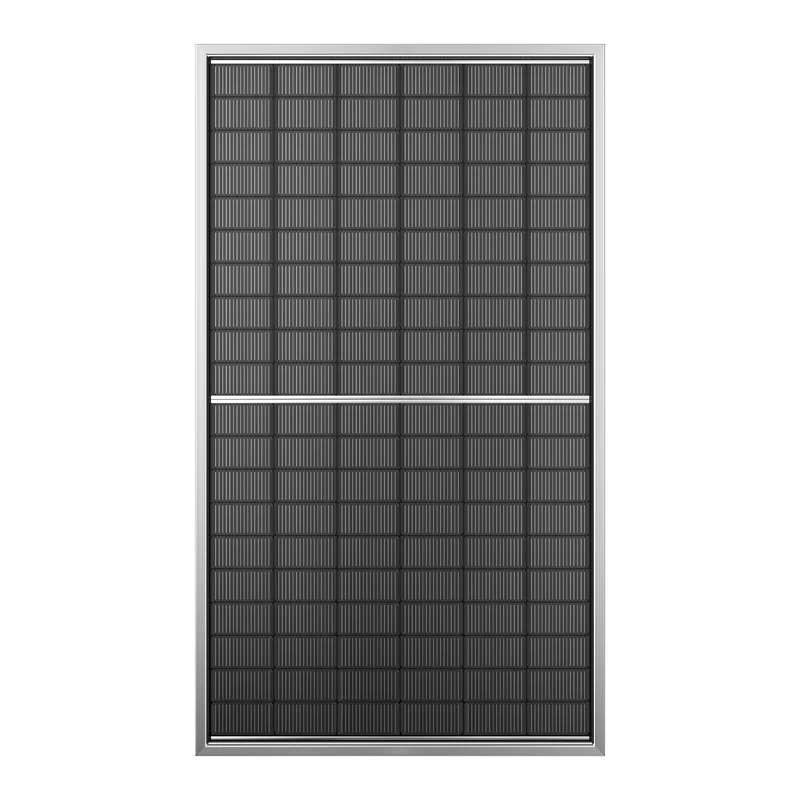

The 540 Watt Mono Half-cut Solar Panel, a cutting-edge solar solution designed to revolutionize your energy generation. With its advanced features and superior technology, this solar panel is the perfect choice for individuals and businesses seeking sustainable and reliable power.
Features
1. Multi Busbar Technology
Better light trapping & current collection to improve, effectively improve the module's power output & reliability. Made of first-class material which ensures a 10-year warranty for material & technology and a 25-year linear power output warranty.
2. Low Light Performance
The special solar cell technology has excellent low-light power generation performance.
3. Batter Resistance To Hot Spots
The use of half-cut cell structure & special circuit design is less shade loss, with better temperature coefficient & thermal spot resistance ability.
4. Adaptability To Harsh Environments
High-performance materials are suitable for coastal, farm, desert, and other harsh environmental conditions, glass surface is anti-reflective & easy to clean, minimizing power generation losses caused by dirt & dust.
Model: ECG-540W-4PC
Cell: Mono
Weight: 27.3kg / pc
Dimensions: 2278±2mm× 1134±2mm×30±lmm / pc
Cable Cross Section Size: 4mm2(IEC), 12AWG(UL)
Solar Cells: 144(6X24) / pc
Junction Box: IP68 3*bypass diode
Connector: QC 4.10-351/ MC4-EV02A
Cable Length(Including Connector)：200mm(+)/300mm(-)

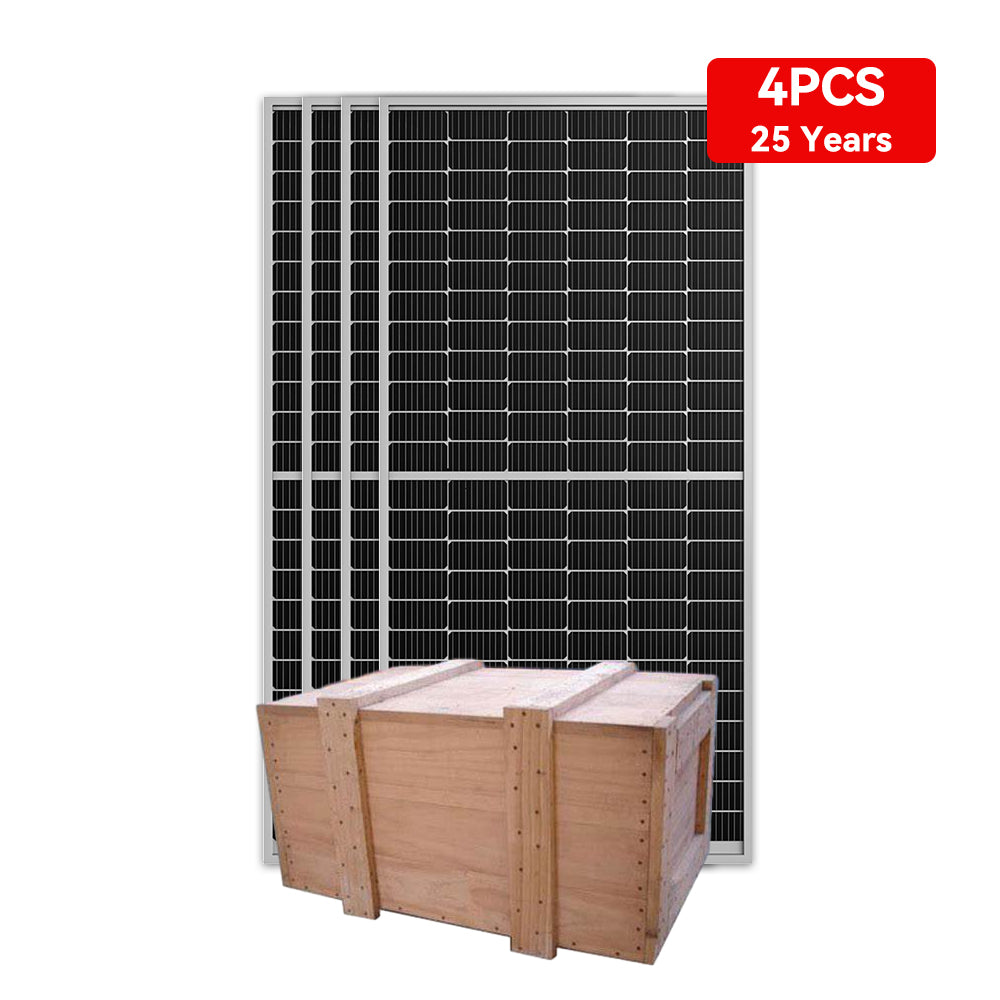

Packaging: 36pcs/Pallet, 720pcs/40HQ
Rate Maximum Power( Pmax/W): 540
Module Efficiency(%): 21.3
Open Circuit Volatge(Voc/V): 49.9
Short Circuit Current(Isc/A): 14.00
Voltage at Pmax(Vmp/V): 41.96
Current at Pmax(Imp/A): 13.11
Power Tolerance: 0~+5w
Temperature Coefficient of Isc: +0.045%℃
Temperature Coefficient of Voc: -0.275%℃
Temperature Coefficient of Pmax: -0.350%℃
STC Irradiance1000W/㎡, CellTemperature25℃, AM1.5
Please let us know if you have any questions about this product.
