Growatt 6000W Hybrid Solar Inverter 48V 220V With MPPT 100A

Regular Price
$1,137.00
Sale Price
$1,137.00
Regular Price
$1,895.00
Sold Out
Unit Price
Translation missing: en.general.accessibility.unit_price_separator
Shipping calculated at checkout.
SPF 6000 ES Plus

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high-frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries.

Features
1. Rated power 5KW , power factor 1
2. MPPT ranges 120V~430V, 450Voc
3. High-frequency inverter with small size and lightweight
4. Pure sine wave AC output
5. Solar and utility grid can power loads at the same time
6. With CAN/RS485 for BMS communication
7. With the ability to work without battery
8. Parallel operation up to 6 unit(only with battery connected)
9. WIFI/GPRS remote monitoring (optional)
10. PV and Grid power the load jointly if PV energy unsufficient
11. Flexibly schedule the Inverter charging and discharging time

Package Including:
1PC Solar Inverter Charger
1PC User Manual (English)

MODEL: SPF 5000W
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid
Rated Power: 5000W
Parallel Capability: 6 units maximum
AC Voltage Regulation (Battery Mode): 230VAC+5% @50/60Hz
Surge Power: 10000W
Efficiency(Peck): 93%
Wave Form: Pure sine wave
Transfer Time: 10ms typical, 20ms Max
Power Factor: >0.99
Feed-in Grid Frequency Range: 49~51+1Hz
Maximum PV Array Power: 6000W
MPPT Range@ Operating Voltage: 120-430VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charging Current: 100A
Charging Current: 80A
AC Input Voltage: 230VAC
Selectable Voltage Range: 170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances)
Frequency Range: 50/60Hz(Auto Sensing)
Protection Degree: IP20

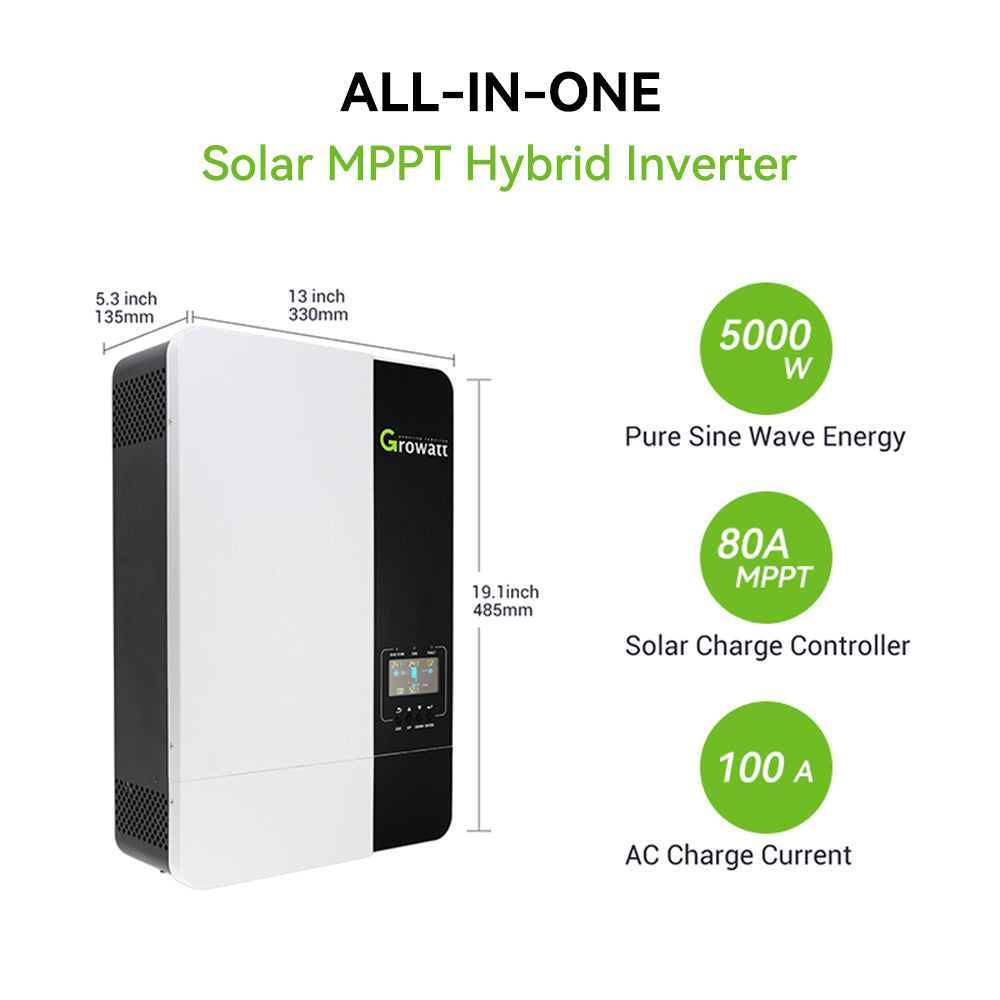

Dimension(W/H/D): 330/485/135mm
Net Weight: 14kgs

Please let us know if you have any questions about this product.
