20M 4mm2 Solar Panel Cable 12AWG/65ft TUV Proved - Black

$41.00
$41.00
$59.00
Sold Out
Shipping calculated at checkout.
MC4X4-B-20M

These cables provide the means to interconnect between photovoltaic (PV) panels and from panels to the “inverter”. They operate at dc voltages and provide long life in exposed conditions.

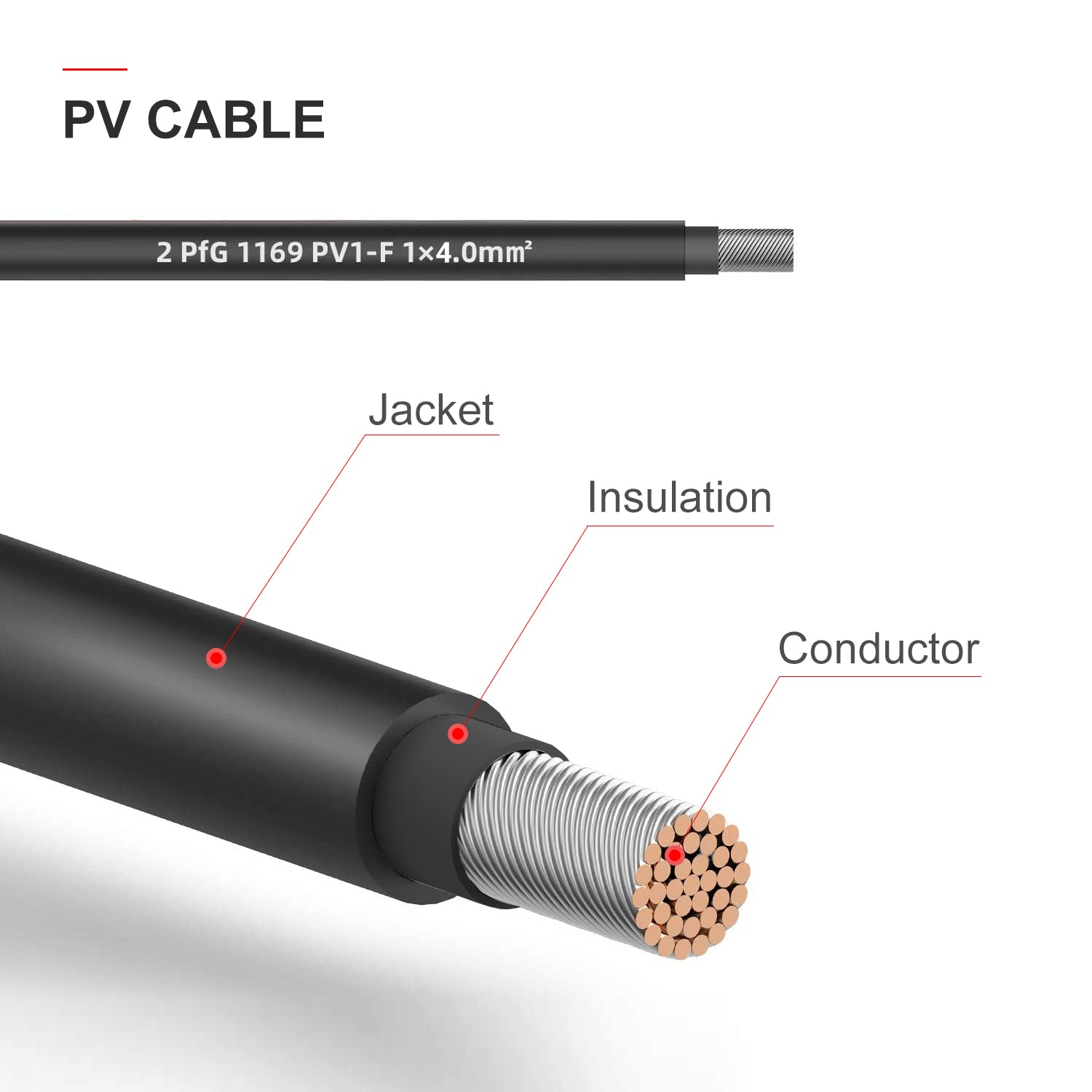

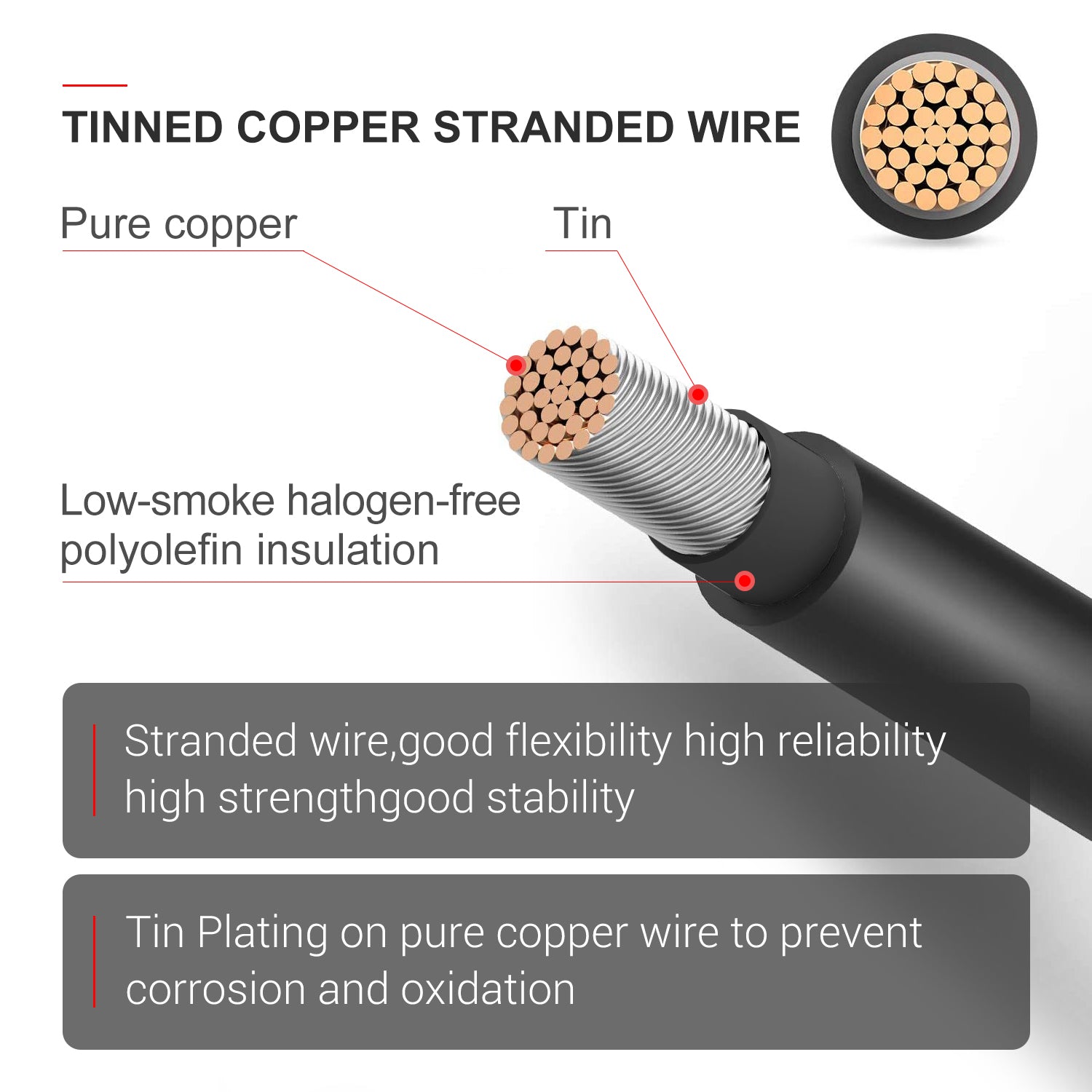

Conductor: Tinned copper wire

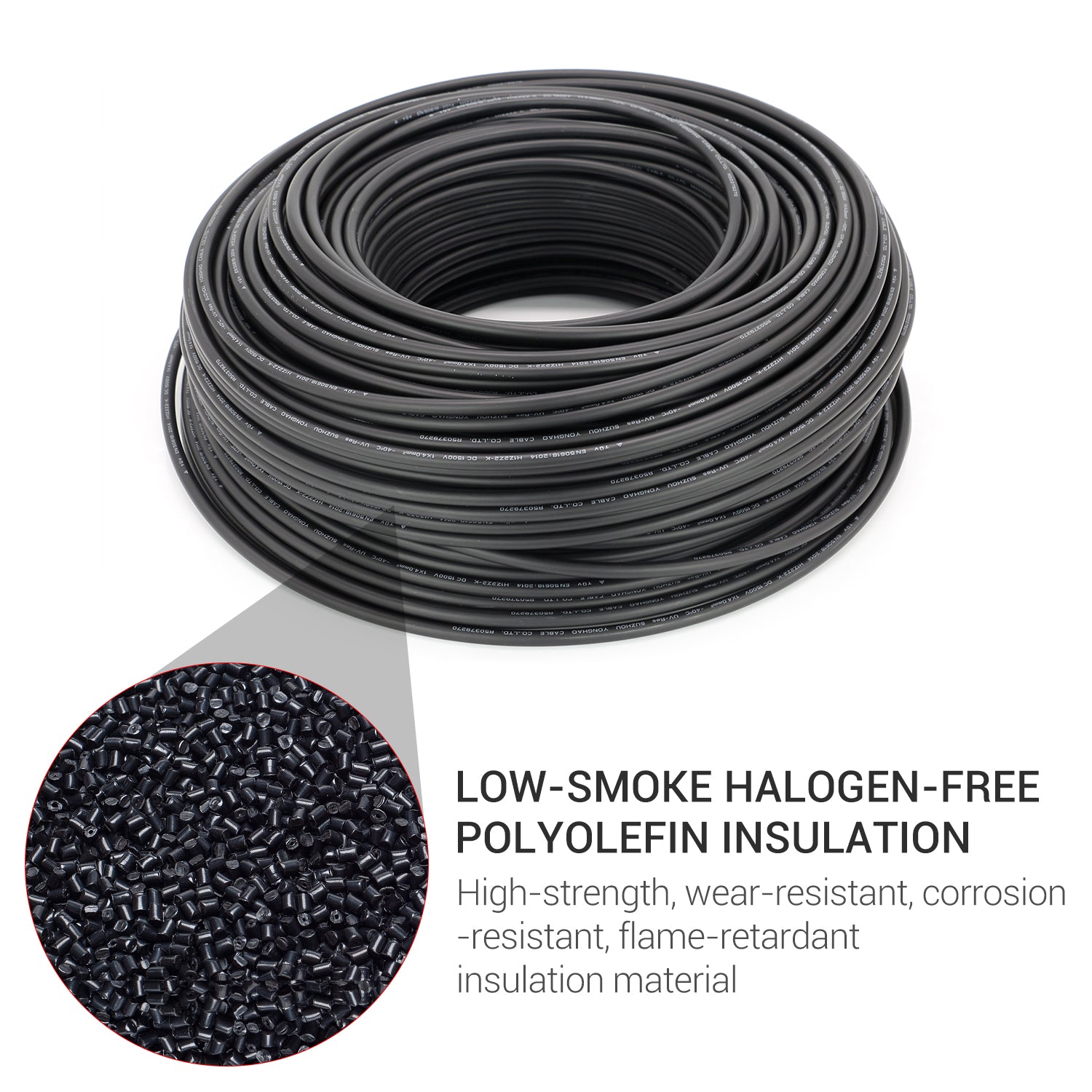

Insulation: XLPO
Jacket: XLPE
Wire size range: 4.0 mm2 12AWG
Rated temperature: -40~ 90
Rated Rating: AC:0.6-1.0KV DC:1.8kv (TÜV CABLE)
AC: 0.6KV(UL CABLE)
Standard: TÜV: 2PfG 1169 08.2007 UL: 4703
Color: Black
Conductor Construction（n/mm): TXR56/0.30
Conductor Stranded OD.(mm): 2.60
Insulation Min.Wall Thickness (mm): 0.67
Sheath Min.Wall Thickness (mm): 0.73
Cable OD.(mm): 6.10
Conductor MaxResistance AT20°C(?/km): 4.95
Current Araaing Capacity AT60°C(A): 55

Please let us know if you have any questions about this product.
